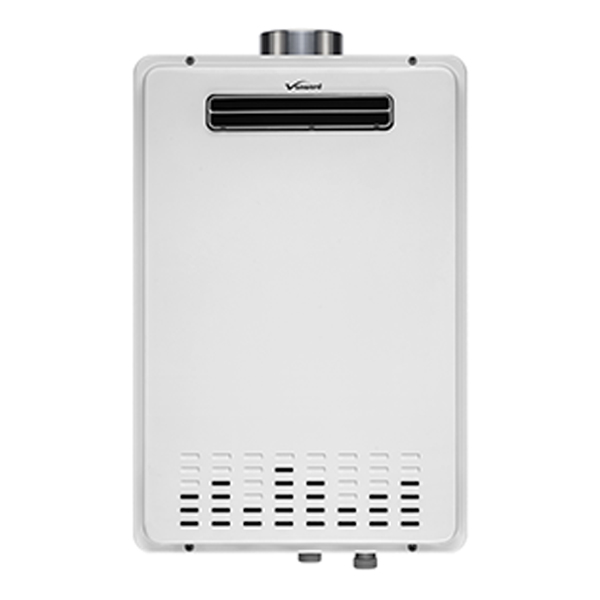

HT-W81
-
Gas-Fired Instant Water Heater
- Balanced Type
- Outdoor Type
-
Natural Draught Type
- QD-H16
- QD/ZD/ND-Q11
- QD/ZD-B12
- QD/ZD-B13
- QD/ZD-B14
- QD/ZD-B11
- YD-P11
- PD-G13
- PD-G12
- PD/GD-F22
- PD/GD-F31
- PD/GD-F32
- PD/GD-F14
- PD/GD-F11
- PD/GD-F13
- PD/GD-F12
- PD-H11
- PD-H12
- PD-H13
- PD-H14
- PD-J21/GD-J21/ZD-J21
- PD-J22/GD-J22/ZD-J22
- PD-J23/GD-J23/ZD-J23
- PD-J24/GD-J24/ZD-J24
- PD-J13/GD-J13/ZD-J13
- PD-J11/GD-J11/ZD-J11
- PD-J14/GD-J14/ZD-J14
- PD-J12/GD-J12/ZD-J12
- LD-M11
- LD-M31
- LD-M12
- Forced Exhaust Type
- Gas-Fired Water Boiler
- Air Source Water Heater
- Electric Water Heater
- Hob
- Oven
- Grill
- Electric Fireplace
Product Description
High-Efficiency Heat Exchanger
Multi-Safe Protection
High Energy Saving Performance
IPX4 Water Proof
Remote Control (Optional)
CSA and AGA approval
Low NOx, Environmental Friendly
Model: 22 / 26 / 60L
|

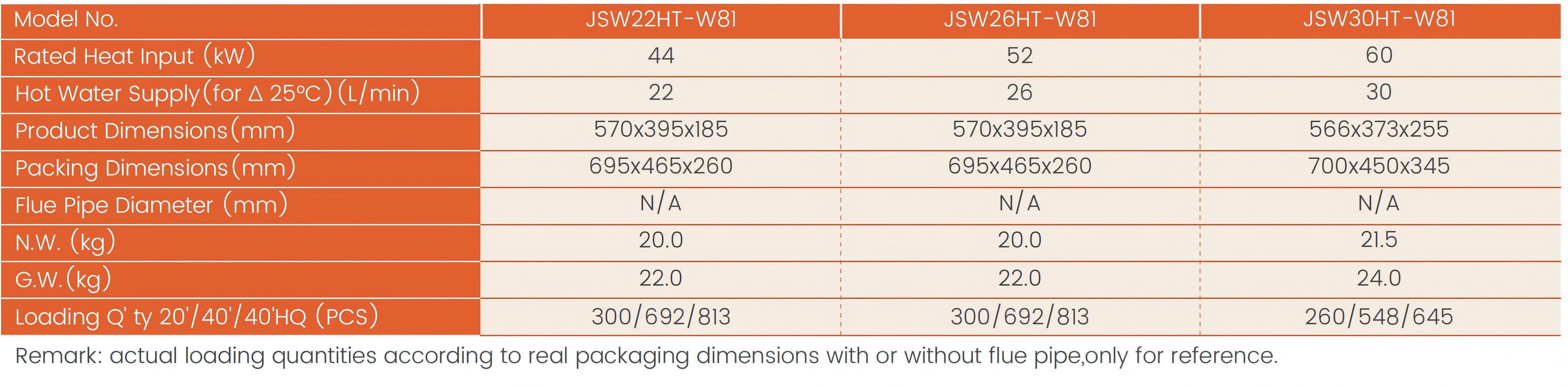

Model No. |
JSW22HT-W81 |
JSW26HT-W81 |
JSW30HT-W81 |
|
Rated Heat Input (KW) |
44 |
52 |
60 |
|
Hot Water Supply (for ∆ 25℃) (L / min) |
22 |
26 |
30 |
|
Product Size (mm) |
570 x 395 x 185 |
570 x 395 x185 |
547 x 365 x 238 |
|
Packing Size of Product (mm) |
695 x 465 x 255 |
695 x 465 x 255 |
700 x 450 x 330 |
|
Packing Size of Flue Duct (mm) |
N / A |
N / A |
N / A |
|
Flue Diameter (mm) |
N / A |
N / A |
N / A |
|
N.W (kg) |
20 |
20 |
21 |
|
G.W (kg) |
21.6 |
21.6 |
23.5 |
|
Loading Q' ty 20' / 40' / 40' HQ (set) |
300 / 692 / 813 |
300 / 692 / 813 |
260 / 548 / 645 |
